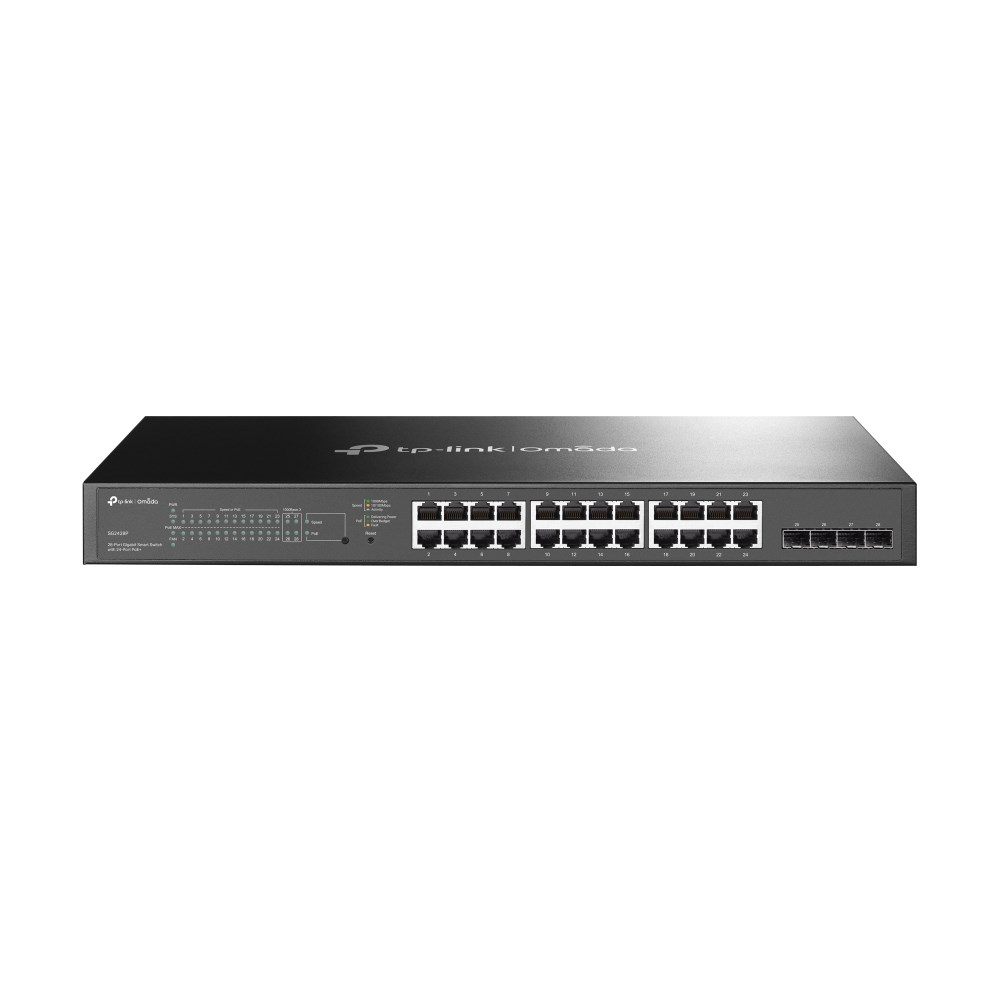

TP-Link Omada pametni stikal, 28-portni Gigabit, 24x PoE+

Opis

Pametni omrežni stikal TP-Link Omada z 28 Gigabit vrati in 24 vrati PoE+ za napajanje naprav. Omogoča napredno upravljanje, vključno s SP, WRR+SP, WRR algoritmom za razvrščanje, BPDU, DHCP in ACL.

Specifikacije

Depth

220 mm

Width

440 mm

Height

44 mm

Warnings

Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.

User guide

Yes

10G support

No

Form factor

1U

MIB support

Y

Switch type

Managed

Jumbo frames

9000

Power source

AC

Switch layer

L2/L2+

VLAN support

Yes

DHCP features

DHCP client, DHCP relay, DHCPv6 client, DHCP snooping, DHCP server

IGMP snooping

Yes

Rack mounting

Yes

Rate limiting

Yes

ARP inspection

Yes

Number of fans

2 fan(s)

Port mirroring

Yes

Product colour

Black

Rack mount kit

Yes

Cables included

AC

Forwarding rate

41.66 Mpps

Number of VLANs

4000

SSH/SSL support

Yes

AC input voltage

100 - 240 V

Heat dissipation

1052.94 BTU/h

Link aggregation

Yes

Number of queues

8

System event log

Yes

MAC address table

8000 entries

Multicast support

Yes

AC input frequency

50/60 Hz

Switching capacity

56 Gbit/s

Authentication type

RADIUS

IP-MAC-Port binding

Yes

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS

Firmware upgradeable

Yes

Flow control support

Yes

Jumbo frames support

Yes

Management protocols

SNMPv1/v2c/v3, SNTP

Networking standards

IEEE 802.1D, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i, IEEE 802.3at, IEEE 802.3u, IEEE 802.1w

Packet buffer memory

4.1 MB

Virtual LAN features

Voice VLAN, MAC address-based VLAN, Protocol-based VLAN

Web-based management

Yes

Cable types supported

Cat4, Cat5, Cat5e, Cat3

Power supply included

Yes

Spanning tree protocol

Yes

Broadcast storm control

Yes

Power consumption (max)

301.1 W

Access Control List (ACL)

Yes

BPDU filtering/protection

Yes

Power over Ethernet (PoE)

Yes

SFP module slots quantity

4

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 50 °C

Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)

Storage relative humidity (H-H)

5 - 90%

Quality of Service (QoS) support

Yes

Fiber ethernet cabling technology

1000BASE-X

Operating relative humidity (H-H)

10 - 90%

Copper ethernet cabling technology

1000BASE-T, 10BASE-T

Total Power over Ethernet (PoE) budget

250 W

Gigabit Ethernet (copper) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

24

Power over Ethernet plus (PoE+) ports quantity

24
