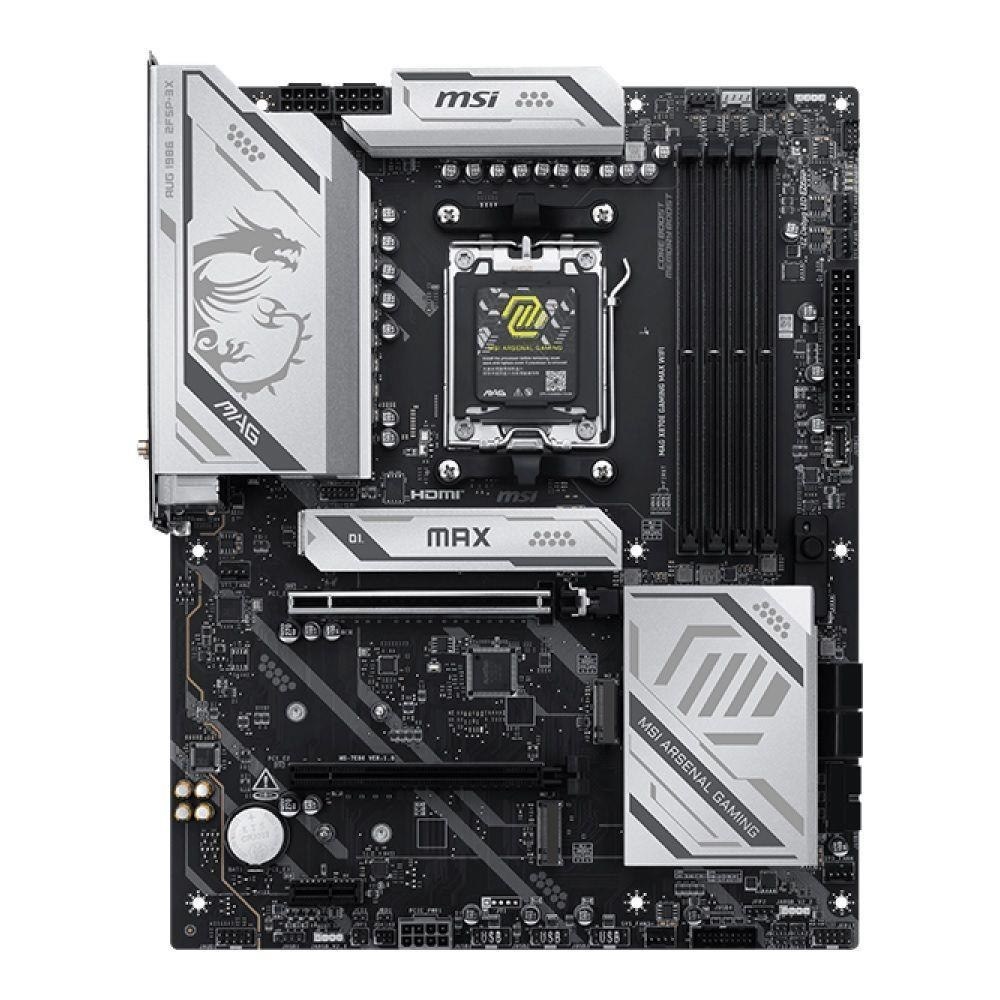

MSI MAG X870E GAMING MAX WIFI ATX matična plošča, AM5, DDR5 M.2, USB4, WiFi

Opis

MSI MAG X870E GAMING MAX WIFI ATX matična plošča za procesorje AMD Socket AM5. Podpira DDR5 pomnilnik, M.2, USB4, WiFi 6E in PCIe 5.0. Združljiva z AMD Ryzen 7000/8000/9000 serijo.

Specifikacije

Depth

304.8 mm

Wi-Fi

Yes

Width

243.8 mm

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.

Bluetooth

Yes

Ethernet LAN

Yes

HDMI version

2.1

Microphone in

Yes

LAN controller

Realtek RTL8126

Memory channels

Dual-channel

S/PDIF out port

No

Wi-Fi standards

Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Processor socket

Socket AM5

Bluetooth version

5.4

CPU fan connector

Yes

Memory slots type

DIMM

ECC сompatibility

Non-ECC

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

USB 2.0 connectors

10

DisplayPort version

1.4

HDMI ports quantity

1

Motherboard chipset

AMD X870

PC health monitoring

Voltage, CPU, Temperature, Fan

Audio output channels

7.1 channels

DisplayPorts quantity

1

Number of memory slots

4

On-board graphics card

No

Processor manufacturer

AMD

Supported memory types

DDR5 DIMM

USB 2.0 ports quantity

4

Ethernet interface type

5 Gigabit Ethernet

Maximum internal memory

256 GB

Motherboard form factor

ATX

Number of M.2 (M) slots

3

1st M.2 largest key size

2280

2nd M.2 largest key size

22110

3rd M.2 largest key size

2280

Number of HDDs supported

4

Ethernet LAN (RJ-45) ports

1

Motherboard chipset family

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

USB4 Gen 2x2 ports quantity

1

ATX Power connector (24-pin)

Yes

Number of SATA III connectors

4

Supported memory clock speeds

6600, 5200, 7600 MHz, 7800, 6400 MHz, 6200, 4800, 5800, 5400, 7400, 8000 MHz, 5000, 7000 MHz, 8200 MHz, 6800, 6000, 5600, 7200 MHz

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Total number of SATA connectors

4

Number of storage drives supported

7

Supported memory clock speed (max)

8200+ MHz

Supported storage drive interfaces

M.2, SATA III

USB 3.2 Gen 1 (3.1 Gen 1) connectors

6

USB 3.2 Gen 2 (3.1 Gen 2) connectors

2

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
